Backup Strategy

This article describes an easy-to-set-up, low-maintenance way to implement the 3-2-1 backup rule for an Ocelot-Cloud server. It focuses on recoverability under realistic failure scenarios such as server compromise, data loss, or accidental deletion.

3-2-1 Backup Rule

The 3-2-1 backup rule is a widely recommended approach to data backup. It recommends:

  • 3 copies of data
  • 2 independent trust domains
  • 1 off-site copy

Proposed Architecture

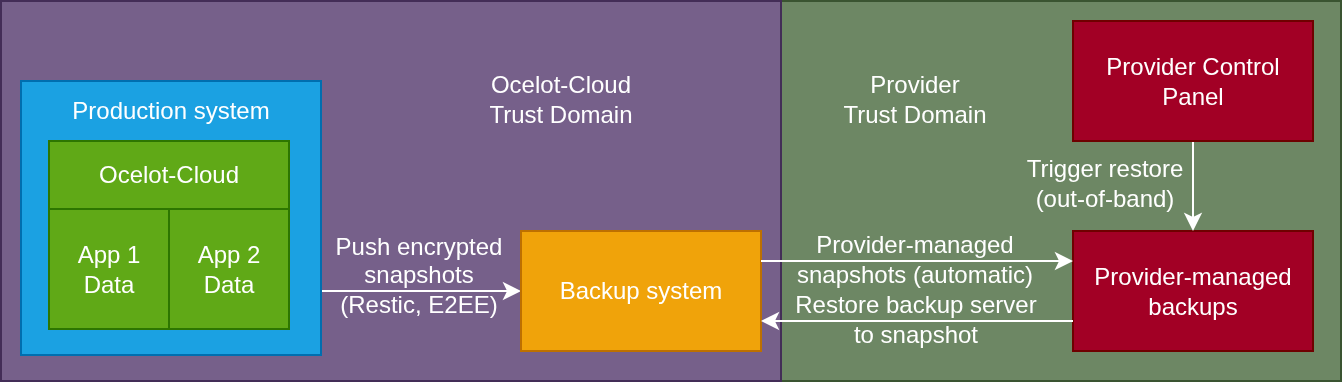

Backup Architecture

The above diagram shows a backup architecture that complies with the 3-2-1 rule. The system is organised into two trust domains.

1. Ocelot-Cloud Trust Domain

This domain contains all components controlled by Ocelot-Cloud:

  • Production system: Runs Ocelot-Cloud and hosts app data (e.g. App 1 data, App 2 data).
  • Backup system: Receives backups from the production system. Backups are created using Restic and are end-to-end encrypted before leaving the production system.

The encryption key is managed by Ocelot Cloud and is not accessible to the storage provider, ensuring that backup contents cannot be read externally. Because both the production and backup systems are controlled by Ocelot Cloud within the same trust domain, a compromise of the production system may also allow deletion of the backup system.

2. Provider Trust Domain

This domain is controlled by the infrastructure provider and is independent from Ocelot-Cloud:

  • Provider-managed backups: The backup system’s storage is protected by provider-managed snapshots or backups that are created automatically, not accessible via SSH and restorable only via the provider’s control panel or API.

These backups provide an independent recovery mechanism if both the production system and the backup system are lost or deleted. Restores from this domain are triggered out-of-band, using separate credentials and access paths.

Mapping to the 3-2-1 Rule

This architecture fulfills the intent of the 3-2-1 rule as follows:

  • 3 copies of data: production data, backup system data, provider-managed backups
  • 2 independent trust domains: Ocelot-Cloud trust domain, provider trust domain
  • 1 off-site copy: provider-managed backups stored outside the production server

Notes on Providers

This setup is provider-agnostic. Any provider offering SSH-accessible storage and provider-managed backups or snapshots can be used. Alternatively, a self-managed SSH backup server may be used, provided it is located off-site and managed independently from the production system.
